Adding guides¤

With Material for nbdev, you can easily add a step-by-step tutorial or comprehensive how-to guide in your documentation.

All you need to do is add the new notebooks to your notebook directory (The directory set in nbs_path in your project’s settings.ini file) and run nbdev_mkdocs preview to preview the documentation. The information from the newly added notebooks will automatically populate in the navigation, making it easily accessible to your audience.

Note

If you have set the custom_sidebar=True your project's settings.ini file, the newly added guide or tutorial will not appear in navigation automatically. To make it appear, manually edit the project's sidebar.yml or _quarto.yml file and include the sections and contents.

Adding a new guide¤

Now, let’s add a new guide to our nbdev_mkdocs_tutorial project. Run the following command from the project’s root directory to create a new guides directory:

mkdir nbs/guides

From the Jupyter home tab, navigate to the guides directory and create a new notebook by clicking on the New dropdown menu. Rename the notebook as Guide_01_Hello_World and create a new markdown cell with the following contents. This will be the title of the guide:

# Hello World

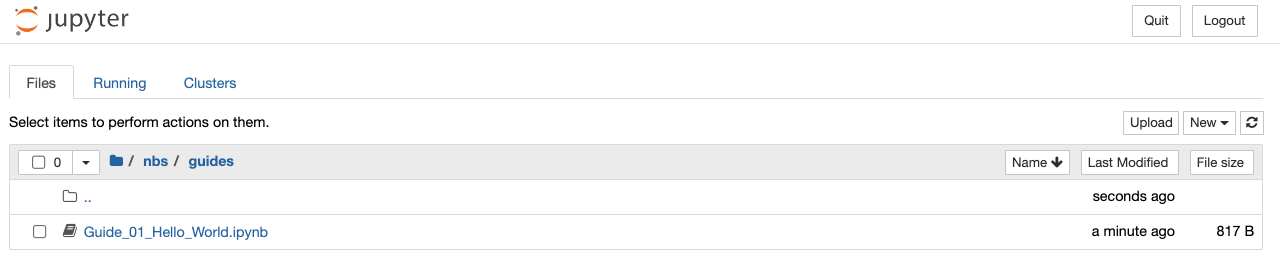

If everything is done correctly, the guides directory will look like this:

Now, run the following command in the terminal to preview the changes in the browser:

nbdev_mkdocs preview

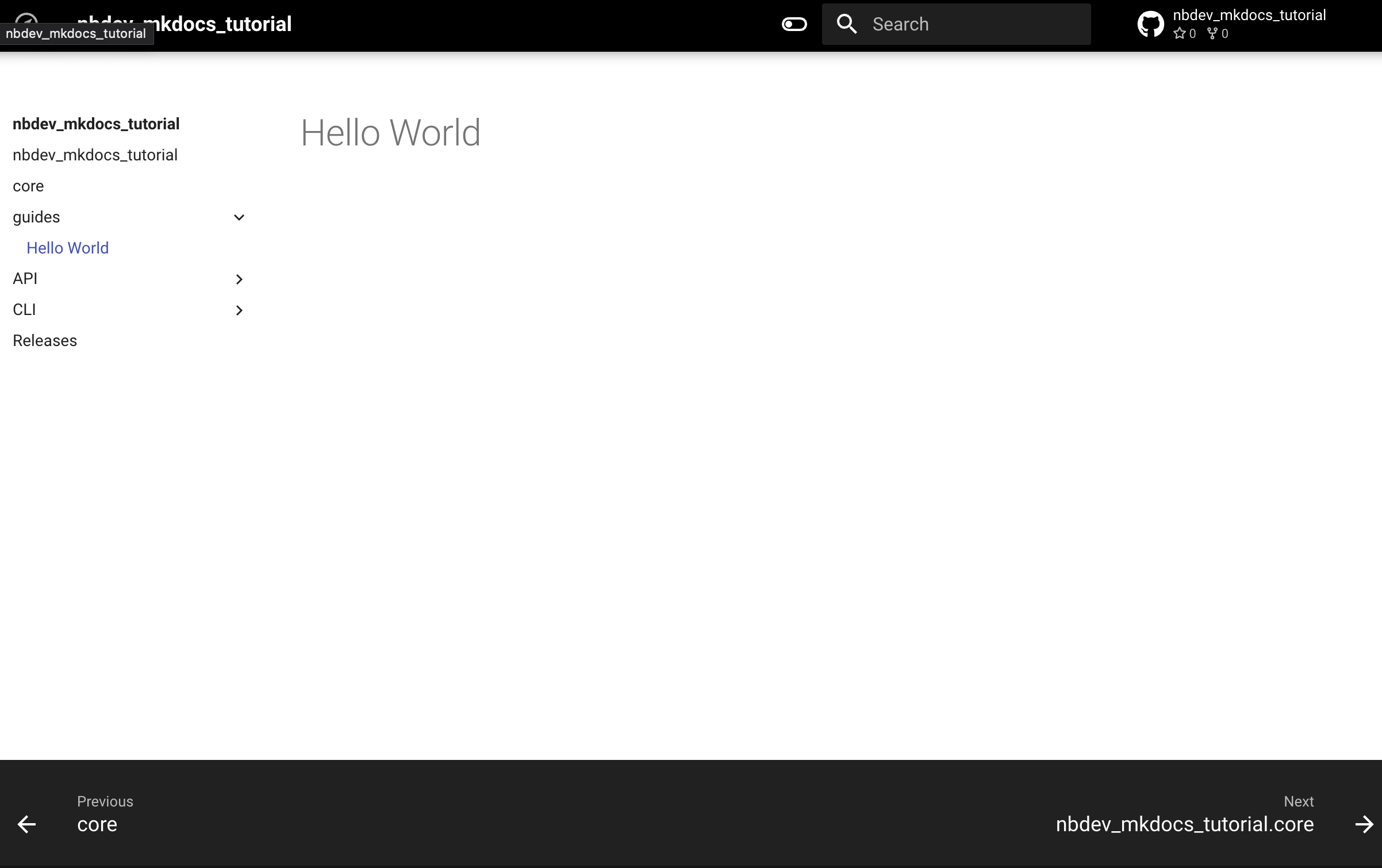

The sidebar will now have a new menu called Guides, and when you click on it, the documentation should look like this:

Now, add another markdown cell just below the title cell and paste the following content:

This is an example of a guide.

Save the notebook, stop the server and re-run the nbdev_mkdocs preview command to preview the changes.

Click on Guides menu in the sidebar, and the documentation should look like this:

Adding images to the guide¤

In the guides, you can include images from your computer as well as images from the internet.

Adding an external image¤

Let’s add an image from the internet to our guide. To keep things simple, we’ll add the nbdev_mkdocs_tutorial repo’s GitHub CI badge to our guide.

Copy and paste the below URL in your preferred browser to view the CI status badge for the nbdev_mkdocs_tutorial repo:

Info

In the following URL:

  • Replace {user} with your github username
  • If you have used a different name for your repo, replace nbdev_mkdocs_tutorial with it.
https://github.com/{user}/nbdev_mkdocs_tutorial/actions/workflows/test.yaml/badge.svg

Make a new markdown cell at the bottom of the Guide_01_Hello_World.ipynb notebook and paste the below content

Info

In the following URL:

  • Replace {user} with your github username
  • If you have used a different name for your repo, replace nbdev_mkdocs_tutorial with it.
From internet:
![](https://github.com/{user}/nbdev_mkdocs_tutorial/actions/workflows/test.yaml/badge.svg)

Save the notebook, stop the server and re-run the nbdev_mkdocs preview command to preview your changes.

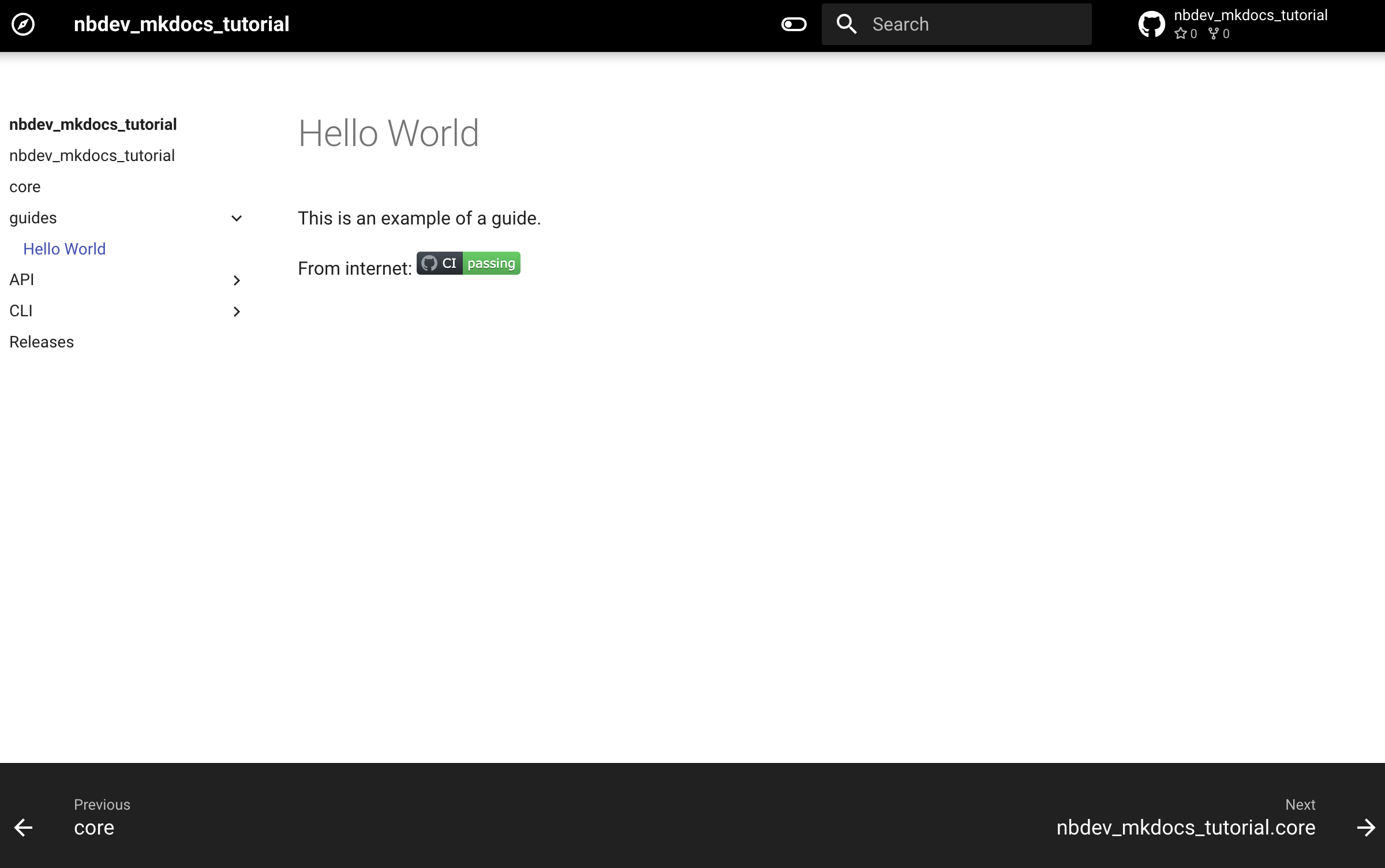

Click on Guides menu in the sidebar, and the documentation should look like this:

Adding a local image¤

For adding images from your computer, the images must be saved within your notebook directory (The directory set in nbs_path in your project’s settings.ini file). Let’s make a directory called images within the guides directory and save the CI status badge image as badge.svg.

Note

The directory name images is used as an example. You can refer to images located in any directory as long as they are inside your project's notebook directory (The directory set in nbs_path in your project's settings.ini file).

Duplicate the above cell and replace From internet: text with From local: and http url with images/badge.svg

Save the notebook, stop the server and re-run the nbdev_mkdocs preview command to preview your changes.

Click on Guides menu in the sidebar, and the documentation should look like this:
